2 x 2 audio rozhranie USB 3.0 s podporou 2 x D-PRE a 32-bit / 192 kHz. viac

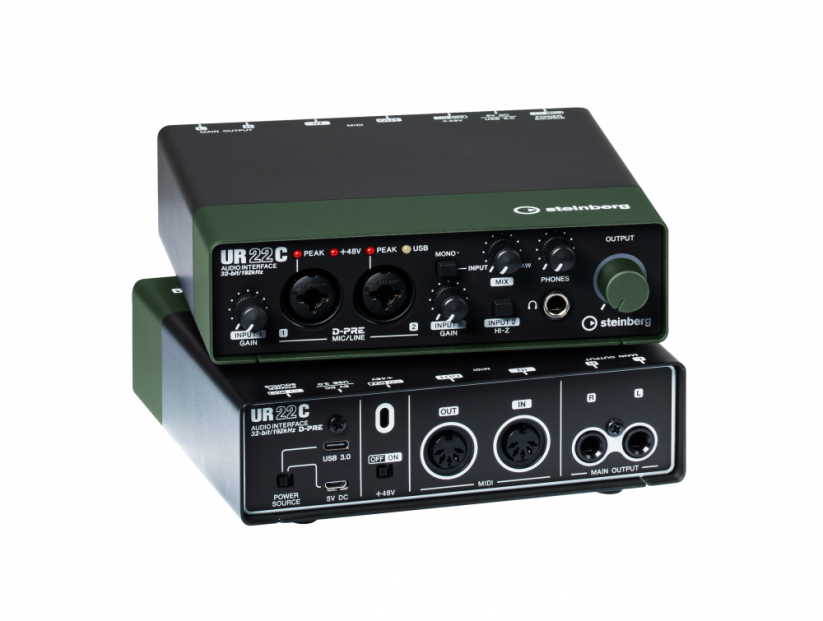

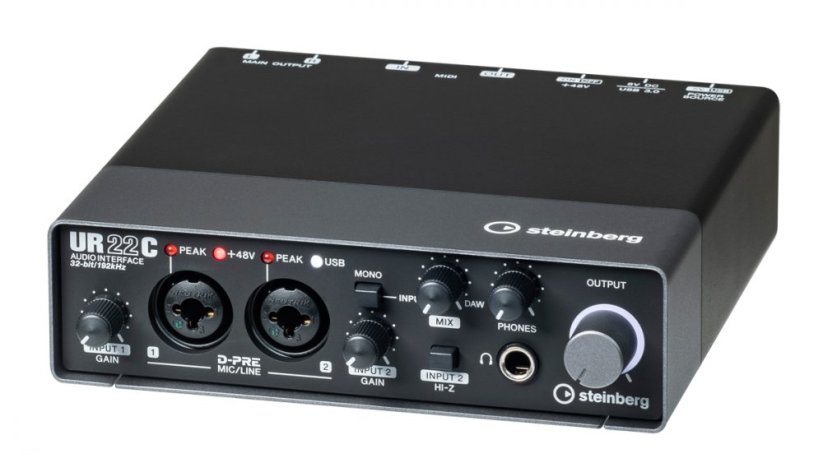

UR22C
Nahrávajte a skladajte hudbu v štúdiovej kvalite na vašom počítači alebo iPade pomocou robustného UR22C. Vďaka super rýchlemu USB 3.0, zabudovanému DSP, vynikajúcej kvalite zvuku a napájaniu zo zariadení vybavených USB 3.0 alebo USB-C, je UR22C plne mobilnou produkčnou platformou, kombinujúcou výber top komponentov s pokročilými možnosťami pripojenia a flexibilitou kombinácií vstupov a výstupov.
Vlastnosti:
- 32-bitové / 192 kHz audio rozhranie USB 3.0 s USB-C konektivitou

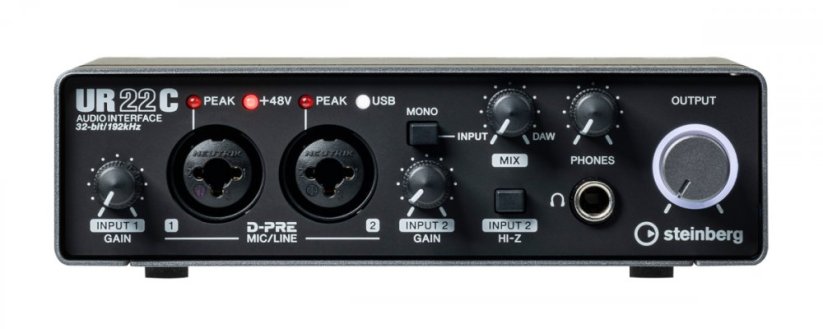

- 2 D-PRE mikrofónové predzosilňovače triedy A podporujúce +48 V fantómové napájanie

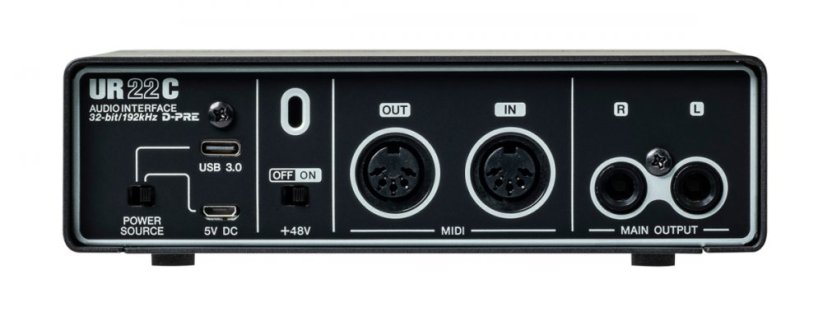

- 2 analógové XLR/TRS kombinované vstupy (Hi-Z prepínač na vstupe 2 pre elektrickú gitaru) a 2 TRS hlavné výstupy
- Monitorovanie bez oneskorenia cez DSP s efektom REV-X reverb, kanálový pás a Guitar Amp Classics (vrátane plug-in verzií VST 3 a AU), gombík na mix pre monitorovanie a prepínač mono
- Napájanie cez USB 3.0 (pre USB 2.0 je potrebný voliteľný napájací zdroj)
- Vstup a výstup MIDI
- Robustný kovový kryt
- Obsahuje verziu softvéru Cubase AI DAW na stiahnutie a Cubasis LE pre iPad
- Editovacia aplikácia dspMixFx pre Windows, MacOS a iOS
- Kompatibilita naprieč platformami pre systémy Windows, MacOS a iOS
UR22C / UR24C / UR44C / UR816C
Mac | PC |
macOS 10.12 / 10.13 / 10.14 |
Windows 7 SP1 / 8.1 /10 |
Intel Core i-series multicore processor 2 GHz | Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor |
2 GB RAM | |
1.2 GB free HD space, high-speed hard disk | |
1280 x 800 display resolution recommended | |
USB-C port or USB 2.0/3.0 port for connection of UR-C unit | |
CC Mode requires iOS 10 (or higher) on iOS devices* | |
Internet connection required for download, installation, activation, account setup and personal / product registration. | |
*CC Mode requires Apple Lightning to USB Camera Adapter / Lightning to USB 3 Camera Adapter (not included) |
CUBASE AI/LE
Mac | PC |
macOS 10.12 / 10.13 / 10.14 | 64-Bit Windows 7 / 8.x / 10 |
64-bit Intel or AMD multi-core processor (Intel i5 or faster recommended) | |
4 GB RAM (8 GB or more recommended) | |
30 GB free HD space | |
1440 x 900 display resolution (1920 x 1080 recommended) | |
Graphics card with DirectX 10 and WDDM 1.1 support (Windows only) | |
An internet connection is required for activation, account setup and personal/product registration. | |
Note: This software version does not support 32-bit plug-ins. |
|
UR22C |
UR24C |
UR44C |
UR816C |
AXR4T |
Connection Type |
USB Type-C |
USB Type-C |
USB Type-C |
USB Type-C |
Thunderbolt 2 |
Design |
Desktop (1/3 19", 1HU) |
Desktop (1/2 19", 1HU) |
Desktop (2/3 19", 1HU) |
19" rack unit, 1 HU |
19" rack unit, 1 HU |
Casing |
Full-metal casing |
Full-metal casing |
Full-metal casing |
Full-metal casing |
Full-metal casing |
Power supply |
USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included) |
USB 3.0 bus-powered, USB Type-C bus-powered, External USB 5 V AC adaptor (not included) |
USB Type-C bus-powered, External 12 V AC adaptor (Yamaha PA-150B) |
External 16 V AC adaptor (Yamaha PA-300C) |
External 24 V AC adaptor (Yamaha PA-700) |
Specification |
UR22C |
UR24C |
UR44C |
UR816C |
AXR4T |
AD/DA |
32 bit |
32 bit |
32 bit |
32 bit |
32 bit |
Maximum sample rate |
192 kHz |
192 kHz |
192 kHz |
192 kHz |
384 kHz |
Dynamic range input |
102 [dB] |
102 [dB] |
102 [dB] |
106 [dB] |
119 [dB] |
Connectivity |
UR22C |
UR24C |
UR44C |
UR816C |
AXR4T |
Total number of Inputs |
2 |
2 |
6 |
16 |
28 |
Total number of indiviudal outputs |
2 |
4 |
4 |
16 |
24 |
Total number of Outputs |
2 |
6 |
6 |
16 |
24 |
Microphone preamp |
D-PRE |
D-PRE |
D-PRE |
D-PRE |
AXR Hybrid Pre with RND Silk |
Microphone inputs |
2 |
2 |
4 |
8 |
4 |
Inputs with line level |
2 |
2 |
4 |
6 |
10 |
Inputs with HI-Z |
1 |
1 |
2 |
2 |
2 |
Analoge Eingänge TRS |
0 |
0 |
2 |
0 |
8 |
Analog input Combo |
2 |
2 |
4 |
8 |
4 |
Analog output TRS |
2 |
2 |
6 |
10 |
8 |
Phantom power |
2 |
2 |
4 |
8 |
4 |
Headphone |
With dedicated volume control |
With dedicated volume control |
With dedicated volume control |
With dedicated volume control |
With dedicated volume control |
Headphones outputs |
1 |
1 |
2 |
2 |
2 |
Digital In ADAT |
0 |
0 |
0 |
1 |
2 |
Digital Out ADAT |
0 |
0 |
0 |
1 |
2 |
Digital In S/PDIF Optical |
0 |
0 |
0 |
1 |
2 |
Digital In AES/EBU RS422 |
0 |
0 |
0 |
0 |
1 |
Digital Out S/PDIF Optical |
0 |
0 |
0 |
1 |
2 |
Digital Out AES/EBU RS422 |
0 |
0 |
0 |
0 |
1 |
MIDI I/O |
• |
• |
• |
• |
• |
DSP-features |
UR22C |
UR24C |
UR44C |
UR816C |
AXR4T |
Monitoring |
Latency free monitoring with FX |
Latency free monitoring with FX |
Latency free monitoring with FX |
Latency free monitoring with FX |
Latency free monitoring with FX |
Onboard DSP |
SSP 3 |
SSP 3 |
SSP 3 |
SSP 3 |
DSPX |
True Integrated Monitoring with FX in Cubase |
• |
• |
• |
• |
• |
High-Pass filter |
• |
• |
• |
• |
|
REV-X Reverb |
• |
• |
• |
• |
• |
Sweet Spot Morphing Channel Strip |
• |
• |
• |
• |
• |
Dimensions |
UR22C |
UR24C |
UR44CÂ |
UR816C |
AXR4TÂ |
Weight |
1000 g |
1100 g |
1500 g |
2700 g |
4600 g |
Width |
159 mm |
198 mm |
252 mm |
446 mm |
480 mm |
Height |
47 mm |
47 mm |
47 mm |
46 mm |
45 mm |
Depth |
159 mm |
159 mm |
159 mm |
226 mm |
378 mm |
