Blackmagic Design ATEM Talkback Converter 4K

61 bodov do vernostného systému

Cena
3 079 € s DPH

Štandardná cena
3 079,20 € s DPH

Ušetríte
0% (0,20 €)


Kód produktu
SWRCONVRCKT4K8

na ext. sklade - V prípade ak ho má dodávateľ na sklade vieme dodať do 3-4 dní.
ks

Umožňuje pripojiť a riadiť 8 SD / HD / Ultra HD kamier na veľké vzdialenosti cez 12G-SDI alebo optické pripojenie. viac

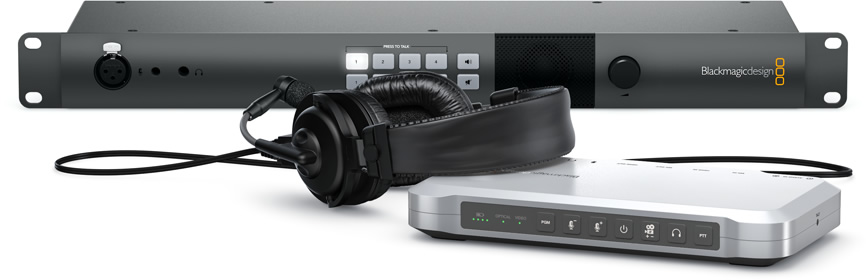

ATEM Talkback Converter 4K

Je vhodný štúdiový doplnok k ATEM Studio Camera a ATEM Camera Convertor (len SD / HD). Umožňuje pripojit až 8x ATEM Studio Camera alebo ATEM Camera Convertor a to na vzdialenosť až 45km s obojmerným videom, Tally a Talkback. Výstup z réžie je takto možné distribuovať až k 8 kamerám. Viaceré Studio Konvertory môžu byť kaskádované za sebou ak je potrebné pripojiť viacej ako 8 kamier. Je ho možné použiť aj ako osem nezávislých konvertorov SDI na Optiku a Optika na SDI.

Vlastnosti:

  • Vhodne pre živé vysielanie
  • Prepojenie cez optiku až do vzdialenosti 45km
  • Talkback
  • Tally
  • Obojsmerné SDI (náhľad pre kameramanov)
  • Kvalitné a odolné prevedenie



Connections



SDI Program Input

1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.

SDI Program Output

1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.

Talkback Audio

Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.

Analog Audio

1 x stereo RCA monitoring output.

SDI Camera Input

8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

SDI Camera Output

8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

SDI Output

8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

Optical Fiber Video Input (Optional)

8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.

Optical Fiber Video Output (Optional)

8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.

Optical Fiber Audio Input

8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.

Optical Fiber Audio Output

8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.

Computer Interface

1 x mini-B type USB connector for firmware updates.







Standards



SD Format Support

525/29.97 NTSC625/25 PAL



HD Format Support

 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.


2K Format Support

 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.


4K Format Support

 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p60.

SDI Compliance

SMPTE 259MSMPTE 292MSMPTE 296MSMPTE 372MSMPTE 424M Level BSMPTE 425M.

Audio Sampling

Television standard sample rate of 48Khz, 24 bit A/D conversion.

Video Sampling

4:2:2, 4:4:4

Color Precision

10-bit

Color Space

REC 601, REC 709.

Multiple Rate support

SDI switches between SD, HD and Ultra HD 4K.

Software

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.

Windows 7 or Windows 8.

Power Requirements



Power Supply

110 - 240V AC input with redundant 12-31V DC input.

Physical Specifications









Environmental Specifications



Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

ATEM Talkback Converter 4K

Software SD Card
